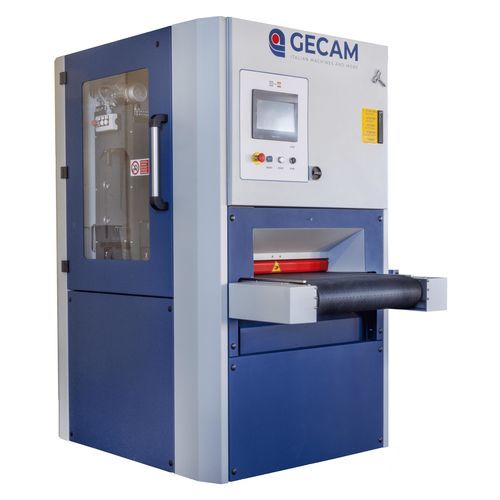

Brush deburring machine G65

abrasive beltfinishingautomatic

Mobile bench abrasive belt sander that supports up to 3 internal work groups for a configuration adaptable to the need for finishing. Motorized lifting work table with the possibility of inserting a vacuum system. Fine control piece thickness adjustment +/- 0.1. Alarm diagnostic unit with immediate display of emergencies and faults. Variable feed speed with automatic centering belt. Electronic control of inlet thickness. Dust extraction hoods for each work group Wet version available for processing materials tending to deformation with heat, equipped with tank with motorized pump for water filtration. Technical specifications Abrasive belt size - mm 670 x 2200 Working thickness min/max - mm 0,5/170 Feed speed - m/min 0,7-6 Suction hood - mm 120 Suction required - m³/h 2400 Maximum dimensions - mm 1045 x 1902 x 2090 Approx weight - from kg 930 WET version Working width - mm 650 Fixed table height - mm 900 Working thickness min/max - mm 0,5/140 Machine elements "R" ABRASIVE BELT - Abrasive belt unit with 125 mm diameter contact roller with heat-resistant nitrile rubber with helical groove and standard hardness 55 ° shore. 7.5 kW 1-speed motor with automatic braking. Automatic belt centering system with electronic photocell. Pneumatic belt tensioning system "X" TOP BRUSHES - Group composed of 8 top quick-change brushes rotating clockwise and counterclockwise simultaneously with transversal movement of the whole group. Motorized and automatic group positioning system according to the program. Brush diameter 115 mm
