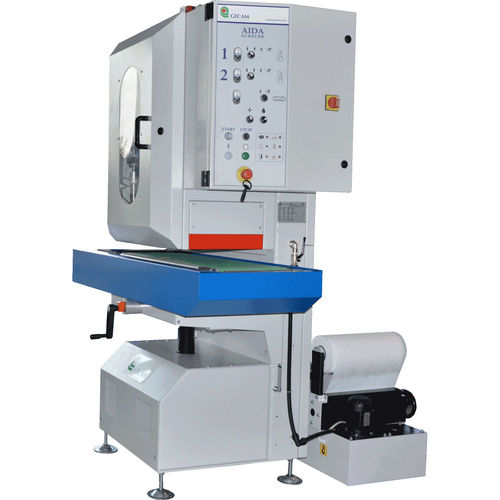

Brush deburring machine GE30 WET

abrasive beltsandingmetal parts

Sanding machine with water sprayers for metal surfaces subject to heat deformation. Equipped with a full and rigid feeding bench with super-grip carpet for perfect adherence of the pieces during processing. Bench movement by handwheel with thickness display with fine adjustment. Double feed speed up to 10 m / min. Group for drying pieces on exit. Configuration with up to two operating groups. Equipped with steel tank for water collection, with cloth paper filter for sludge separation. Sanding machine with water sprayers for metal surfaces subject to heat deformation. Equipped with a full and rigid feeding bench with super-grip carpet for perfect adherence of the pieces during processing. Bench movement by handwheel with thickness display with fine adjustment. Double feed speed up to 10 m / min. Group for drying pieces on exit. Configuration with up to two operating groups. Equipped with steel tank for water collection, with cloth paper filter for sludge separation. Technical specifications Abrasive belt dimensions - mm 320 x 1900 Max working thickness - mm 140 Feed speed min/max - m/min 5/10 Maximum dimensions - mm 1430 x 860 x 2100 Approx weight - from kg 660 Machine elements "R" ABRASIVE BELT - Abrasive belt unit with 125 mm diameter contact roller with heat-resistant nitrile rubber with helical groove and standard hardness 55 ° shore. 1-speed 3.0 kW motor with automatic braking. Automatic belt centering system with electronic photocell. Pneumatic belt tensioning system "T" TOP BRUSH - Top rotating and oscillating brush group with 115 mm diameter. In the standard version, mixed brushes scotch brite and canvas are available. 1 speed motor kW 3.0.
