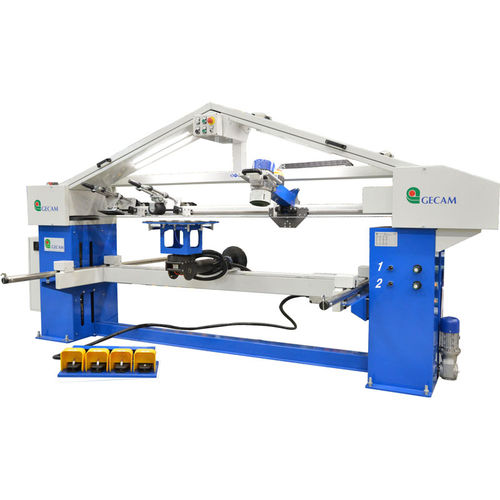

Abrasive belt deburring machine GCB

finishingvacuum

Double abrasive belt grinding machine with high working capacity, with belt speed control from 0 to 3000 rev / min. Pneumatic tension system and various accessories for the workpiece machining according to the need, rubber roller, shoe, brush. Special configuration of guide rollers and idle rollers that allow the operator to move the accessory to any point on the belt. Motorized workpiece support table. Vacuum handling system available with suction cups to block the most difficult pieces to work in any position, with 360 ° horizontal shaft rotation, 360 ° vertical axis rotation and 90 ° horizontal inclination. Available vacuum handling system with suction cups to block the most difficult and bulky pieces to be processed in any position. 360° horizontal shaft rotation, 360° vertical axis rotation and 90° horizontal tilt. The control panel of the GCB double belt deburring machine is simple and intuitive, positioned in front of the working area. Available stacker to be placed next to the machine for the sdtorage of accessories, convenient because has a sliding system on guided wheels. Technical specifications Working table dimension - mm 2500/3000 x 800 Abrasive belt size - mm 120 x 8000/9000 Table stroke Z - mm 600 Maximum piece weight on table - kg 100 Maximum weight on locking system - kg 8 Maximum weight on manipulator - kg 37 Maximum dimensions - mm 1000 x 3750 x 2200 Approx weight - from kg 790 Machine elements "R" ABRASIVE BELT - Transversal abrasive belt unit with pneumatic tensioning system, high flexibility to adapt to all conditions of the piece
