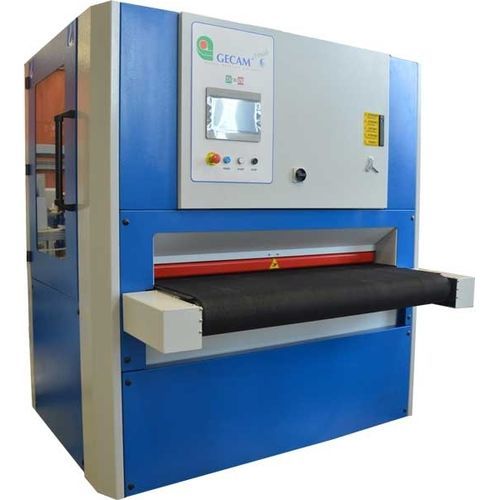

Brush deburring machine G135

abrasive beltfinishingautomatic

Deburring machine at mobile bench with max 3 upper work groups with variable configuration according to the specific finishing needs, with independent motors for autonomous control of the work group. Variable speed motorized work table with possible insertion of a vacuum system for better sealing of the pieces. Self-centering belt, control system for over-thickness. Dust extraction hoods for each group Technical specifications Abrasive belt size - mm 1370 x 2200 Working thickness min/max - mm 0,5/170 Feed speed - m/min 0,7-6 Suction hood - mm 200 Suction required - m³/h 6000 Maximum dimensions - mm 1750 x 2100 x 2180 Approx weight - from kg 1590 Machine elements "R" ABRASIVE BELT - Abrasive belt unit with contact roller 180 mm diameter with heat-resistant nitrile rubber with helical groove and standard hardness 55 ° shore. 1 speed motor kW 11 with automatic braking. Automatic belt centering system with electronic photocell. Pneumatic belt tensioning system "X" TOP BRUSHES - Top brush group composed of 20 quick change top brushes rotating clockwise and counterclockwise simultaneously with transversal movement of the whole group. Motorized and automatic group positioning system according to the program. Brush diameter 115 mm "B" CYLINDRICAL BRUSH - Group with scotch brite brush diameter 200 mm, manual ascent and descent system with mechanical height indicator, 1-speed motor 7.5 kW and transversal oscillation system. Rotation in both directions possible
