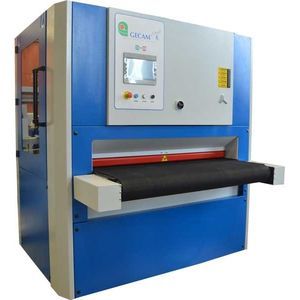

Abrasive belt deburring machine STIFFELIO G11finishingautomatic
Add to favorites
Compare this product
Characteristics
- Type
- abrasive belt
- Associated function
- finishing
- Other characteristics
- automatic
- Working width
1,100 mm
(43.31 in)
Description
Deburring machine with single abrasive belt working group with mobile bench with adjustment lever with fine control +/- 0.1 and digital thickness display. Advance group with self-centering rubber belt with rubberised pressure rollers before and after the work group and idle roller at the input and output.
Technical specifications
Abrasive belt size - mm 1120 x 1524
Working thickness min/max - mm 0,5/130
Feed speed - m/min 2-9
Suction hood - mm 120
Maximum dimensions - mm 1650 x 1150 x 2000
Approx weight - kg 800
Machine elements
"R" ABRASIVE BELT - Abrasive belt unit with contact roller 150 mm diameter with heat-resistant nitrile rubber with helical groove and standard hardness 55 ° shore. 1 speed motor kW 11 with automatic braking. Automatic belt centering system with electronic photocell. Pneumatic belt tensioning system
