Manual press 8/12 HKPV

punchingassemblycompact

Overview

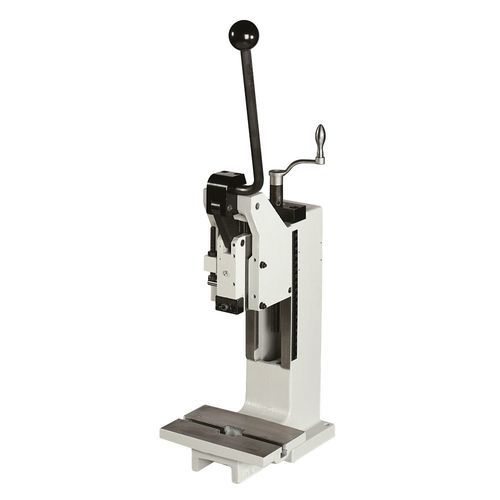

Manual toggle press for precise punching and assembly in industrial and workshop environments. Compact design with adjustable installation height and removable clamped piece for flexible tooling.

Dimension table
A2: 328
B: 140
C: 415
D: 200
E: 120
F: 92
G: 75
U: 21
V: Ø 10 H7
X: 75-240
X1: 0-45
Y: 655-820

Unique / Special features
Unique at GECHTER: play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.
1 x DIN 650 M8x10

Accessories (selection shown on product page)

• Base: Standard press with enlarged installation height
• Base: Standard press without accessories
• Base: Standard press with enlarged throat
• Accessories: Fine adjustment PFE
• Accessories: Mechanical return stroke
• Accessories: Precision depth adjustment PTE (adapter)
• Accessories: Centering plate with middle bore
• Accessories: Mechanical stroke counter
• Accessories: Ergonomic handle
• Accessories: Clamping pin without collar
• Accessories: Clamping pin with collar
• Sliding table: Heavy-duty sliding table, mechanical
• Sliding table: Heavy-duty sliding table, mechanical with locking bolt
• Clamping bracket: Clamping bracket approx. H 160 x W 130 x H 58 mm (only for stands with enlarged overhang)
• Clamping bracket: Clamping bracket approx. H 160 x W 130 x H 118 mm (only for stands with enlarged overhang)

Technical specifications

• Press type: Manual toggle press
• Operation: Manually
• Overhang: 120 mm
• Installation height adjustable: 75 mm - 240 mm
• Stroke adjustable: 23 - 45 mm
• Max. press force at lower dead center: 20 kN or 16 kN
• Lever operating force, allowed maximum: 350 N
• Location bore: Ø10 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Hand lever position: Right and left 360° adjustable
• Height adjustment guide unit: Hand crank
• Fastening guide unit per screw: 120 Nm
• Standard color: RAL 7035
• Weight: 32 kg
