Manual press 50 HKP

assemblyrivetingtoggle

Overview

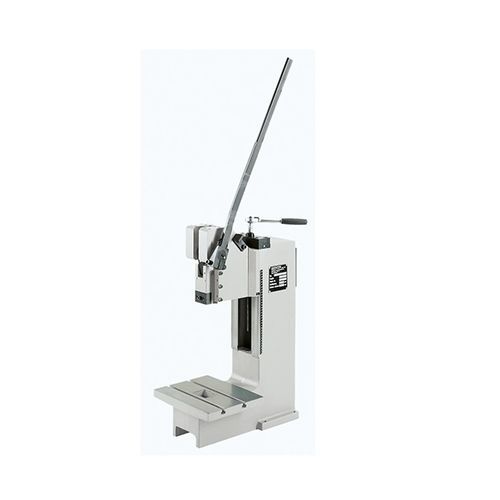

Manual toggle press for precision manual pressing in industrial and workshop applications. Play-free adjustable prism guide ensures secure guidance; the clamped piece can be removed forwards without damaging the clamping pin. Suitable for assembly, riveting and staking operations.

Dimension table
A2: 565
B: 220
C: 715
D: 340
E: 200
F: 150
G: 120
U: 44
V: Ø 25 H7
X: 110-370
X1: 0-15
Y: 1250-1510

Accessories and base versions

• Base: Standard press without accessories
• Base: Standard press with enlarged throat
• Base: Standard press with enlarged installation height
• Accessories: Clamping pin without collar
• Accessories: Clamping pin with collar
• Accessories: Precision depth adjustment PTE (adapter)
• Accessories: Centering plate with middle bore
• Accessories: Mechanical stroke counter
• Sliding table options: Heavy-duty sliding table, mechanical
• Sliding table options: Heavy-duty sliding table, mechanical with locking bolt
• Clamping brackets: approx. H 160 x W 130 x H 58 mm (only for stands with enlarged overhang)
• Clamping brackets: approx. H 160 x W 130 x H 118 mm (only for stands with enlarged overhang)

Characteristics / Technical specifications

• Press type: Manual toggle press
• Operation: Manually
• Overhang: 200 mm
• Installation height adjustable: 110 mm - 370 mm
• Stroke: 15 mm
• Max. pressforce at lower dead center: 55 kN
• Lever operating force, allowed maximum: 330 N
• Location bore: Ø25 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Hand lever position: Right 360° adjustable
• Height adjustment guide unit: Ratchet
• Fastening guide unit per screw: 170 NM
• Standard color: RAL 7035
• Weight: 184 kg
