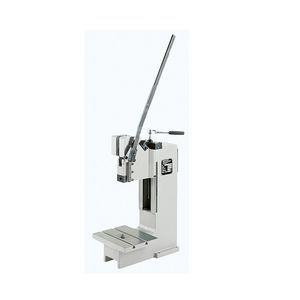

Manual press 2.5 HKP/E
manually-controlledtogglehand-operated

Manual press - 2.5 HKP/E - GECHTER - manually-controlled / toggle / hand-operated
Manual press - 2.5 HKP/E - GECHTER - manually-controlled / toggle / hand-operated
Manual press - 2.5 HKP/E - GECHTER - manually-controlled / toggle / hand-operated - image - 2
Manual press - 2.5 HKP/E - GECHTER - manually-controlled / toggle / hand-operated - image - 3
Add to favorites
Compare this product

Characteristics

Operation
manual, manually-controlled
Structure
toggle
Control
hand-operated
Other characteristics
with lever control
Force

5 kN

Opening

Max.: 165 mm
(6 in)

Min.: 70 mm
(3 in)

Stroke

Max.: 32 mm
(1.26 in)

Min.: 0 mm
(0 in)

Weight

7 kg
(15 lb)

Description

Dimension table
A2: 188
B: 50
C: 260
D: 120
E: 70
F: 55
G: 39
U: 21
V: Ø 10 H7
X: 70-165
X1: 0-32
Y: 413-510

Accessories / Base
  • Base: Standard press without accessories
  • Centering plate with middle bore
  • Ergonomic handle
  • Clamping pin without collar
  • Clamping pin with collar
  • Precision depth adjustment PTE (adapter)

Unique features
T-slot DIN 650 M8x10

Technical specifications
  • Press type: Manual toggle press
  • Operation: Manually
  • Overhang: 70 mm
  • Installation height adjustable: 70 - 165 mm
  • Stroke adjustable: 32 mm
  • Max. pressforce at lower dead center: 5 kN
  • Lever operating force, allowed maximum: 190 N
  • Location bore: ∅10 H7
  • Clamped piece: Clamping screw
  • Direction type: Circular
  • Twist-free guide: Twist-free with play ±0.1 mm
  • Hand lever position: Center right
  • Height adjustment guide unit: Manually
  • Fastening guide unit per screw: 70 Nm
  • Standard color: RAL 7035
  • Weight: 7 kg
