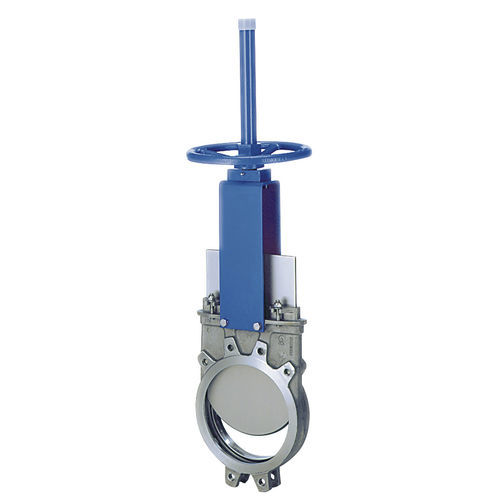

Knife gate valve CAwith handwheelpneumatically-operatedelectric
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- with handwheel, pneumatically-operated, electric, hydraulically-operated
- Body
- 1-piece, stainless steel, cast iron, monobloc
- Applications
- for the chemical industry, beverage, for water treatment, for bulk materials, for the paper industry, solids
- Associated function
- sewage
- Other characteristics
- solids
- DN
Max.: 1,800 mm
(70.866 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar
(145 psi)
Description
One-piece body with raised sealing surface for secure seating and slide blade guidance. Intermediate flange design in short length. Sealing on one side - can only be pressurized in the direction indicated by the arrow, intermediate flange valve can be used as end valve.
Mounting Flange DIN EN 1092-1, PN 10, ANSI 150
Body material Cast iron GG 25, rust and acid resistant stainless steel 1.4408
Gate valve blade Rust- and acid-resistant stainless steel
Drive types Handwheel, hand lever, chain wheel, bevel gear, pneumatic, hydraulic cylinder, electric rotary actuator
