Ball valve PM lever controlcontrolmounting flange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever control
- Function
- control
- Body
- mounting flange, 2-piece
- Applications
- for powders, for granulates, for abrasive products
- Other characteristics
- ISO, DIN, full-flow, high-performance, solids
- DN
Min.: 25 mm
(0.984 in)Max.: 200 mm
(7.874 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 650 °C
(1,202 °F)
Description

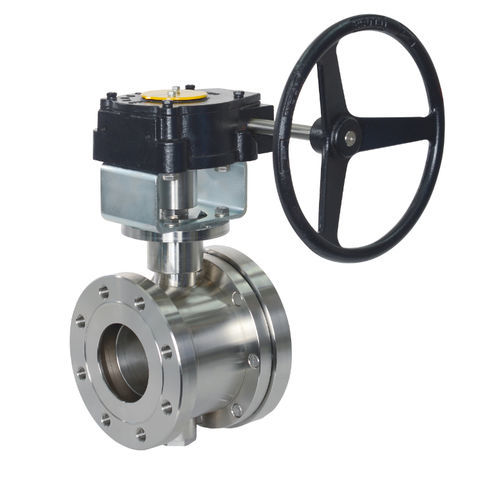

Our solids ball valve in two-piece design is for installation between flanges according to EN 10921, the ball is centrically counter-bearing. The solids ball valve is particularly suitable for difficult applications where dry and abrasive solids such as powder, ash, granules, etc. are used.
Special features Designed for demanding applications with dry, abrasive solids (powder, ash, etc.), only one preloaded spring seat ring, bearing and spring chamber sealed against contamination
Mounting flange DIN EN ISO 5211
Test DIN EN 12266-1
