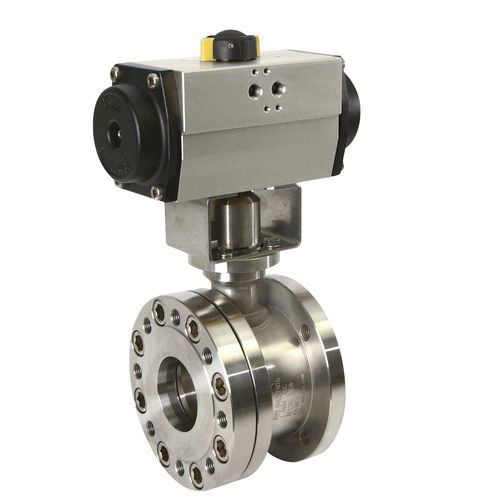

Ball valve SKpneumatically-operatedcontroldouble-flange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- pneumatically-operated
- Function
- control
- Body
- double-flange
- Applications
- for bulk materials, for powders, for the paper industry, sludge
- Other characteristics
- ISO, ANSI, DIN
- DN
Max.: 200 mm
(7.874 in)Min.: 25 mm
(0.984 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 400 °C
(752 °F)Min.: -60 °C
(-76 °F)
Description
Ball segment valve with precise sealing function due to the eccentric technology reliable tightness in the closure due to permanent pressure in the seat (valve closes without stop), opening of the full cross-section without media containment and without dead space
Pressure ratings PN 10 - 40 or ASME Class 150/300 lbs (other pressure ratings on request)
Connections Flanges according to EN 10921, face-to-face EN 558 and ANSI B16.10
Automation interface according to DIN EN ISO 5211:2001
Industries and applications
The ball segment valve offers application possibilities for media that are difficult to control:
Resinous media
Adhesives
Dyestuffs
Fly ash
