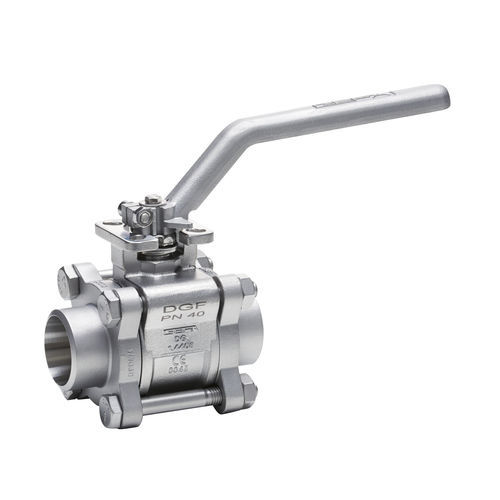

Ball valve DGF leverfor liquid food products and beveragesbeverage
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for liquid food products and beverages, beverage
- Body
- mounting flange, weld, 3-piece
- Applications
- for the chemical industry, for the food industry, for the petroleum industry
- Material
- stainless steel
- Other characteristics
- ISO, DIN, emergency, fire-safe
- DN
Max.: 100 mm
(3.937 in)Min.: 8 mm
(0.315 in)- Pressure
40 bar
(580.2 psi)
Description
Ball valve with Firesafe approval according to BS6755-2, 3-piece body, pressure class depending on the nominal size up to PN 40, floating ball, vacuum-tight.
Bore Full and reduced bore
Special features Can be combined with all kinds of end connectors. Functional safety due to metallic emergency sealing. No disassembly necessary for welding.
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12, leakage rate A
