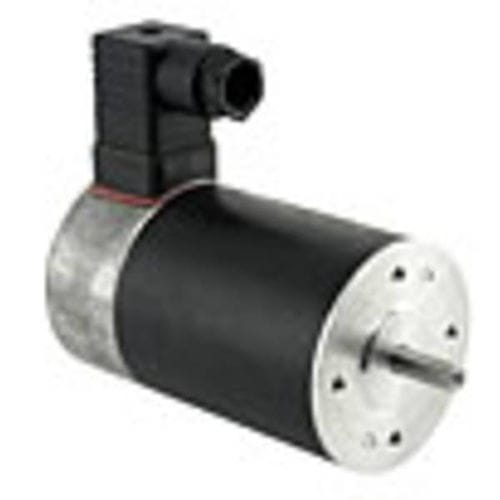

Brushless motor G 6DC24 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- permanent magnet
- Protection class
- IP65, IP40
- Number of poles
- 2-pole
- Other characteristics
- custom, high-performance
- Power
34 W, 58.1 W, 74.4 W
(0.05 hp, 0.08 hp, 0.1 hp)- Intensity
2 A, 3.2 A, 4.3 A
- Torque
0.001 Nm, 0.0019 Nm, 0.0025 Nm
(0.000738 ft.lb, 0.001401 ft.lb, 0.001844 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Diameter
68 mm
(2.68 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Connection: Connection to the power supply, battery, PWM controller or control amplifier, residual ripple of the operating voltage max. 5%, Cable connection, optional plug-in connector
Commutation: Mechanical commutation using a 12-part commutator
Magnetic system: 2-pole permanent ferrite magnet
Service life: 5,000 h, S1 duty
Insulation mat. class: B, optional F
Special model: Design for short-time operation with high performance, additional voltages and speeds upon request
Options: Special shafts, custom designed
