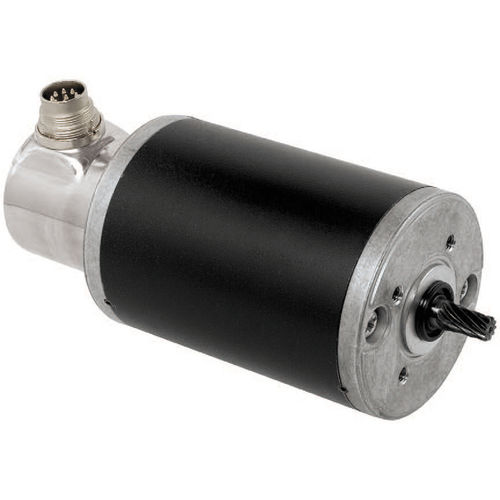

Brushless motor PSA 6325DC24 Vwith integrated driver and coder
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- with integrated driver and coder, permanent magnet
- Protection class
- IP65
- Other characteristics
- CANopen communication, with integrated motion controller
- Power
43.5 W
(0.06 hp)- Intensity
2.6 A
- Torque
0.0145 Nm
(0.010695 ft.lb)- Rotational speed
2,900 rpm
(18,221.2374 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
CANopen, Integrated 1Q controller, Integrated power electronics, DC permanent magnet motor, Absolute multi-turn encoder
Life time: 2,000 h
Isolation class: B, optional F
Protection class: IP 42, optional up to IP 65
