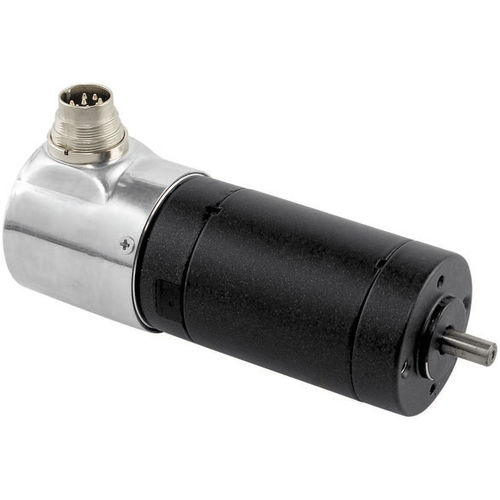

Brushless motor PSA 4520DC24 Vwith integrated driver and coder
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- with integrated driver and coder, permanent magnet
- Protection class
- IP65
- Other characteristics
- CANopen, with integrated motion controller
- Power
22.5 W
(0.03 hp)- Intensity
1.5 A
- Torque
0.0066 Nm
(0.004868 ft.lb)- Rotational speed
3,250 rpm
(20,420.3522 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
CANopen, Integrated 1Q controller, Integrated power electronics, DC permanent magnet motor, Absolute multi-turn encoder
Life time: 2,000 h
Isolation class: B, optional F
Protection class: IP 42, optional up to IP 65
