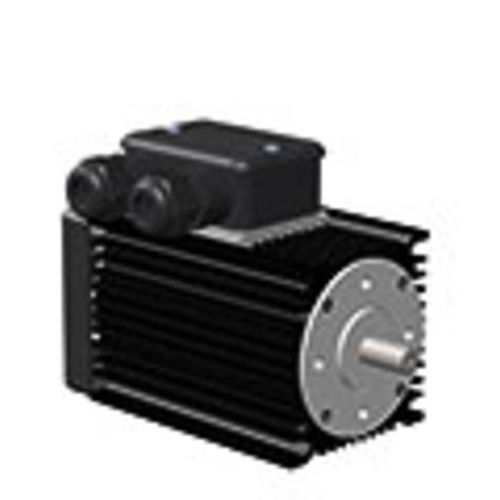

Brushless motor MQ 7DC24 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- permanent magnet, stainless steel
- Protection class
- IP65, IP44
- Number of poles
- 8-pole
- Other characteristics
- high-performance
- Power
185 W, 277 W
(0.25 hp, 0.38 hp)- Intensity
12.2 A, 17.7 A
- Torque
0.62 Nm, 1.02 Nm
(0.457289 ft.lb, 0.752313 ft.lb)- Rotational speed
2,600 rpm, 2,850 rpm
(16,336.2818 rad.min-1, 17,907.0781 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
with enhanced cooling
Connection: Operation on the external standard controller (block commutation) Rotor position sensing using 3 hall sensors. K4 terminal box for power supply and sensors
Rotor: 8-pole neodymium magnet, slight detent torque due to continual angular magnetization (no grades)
Service life: 20,000 h, S1 duty
Insulation mat. class: F
Special model: Design for short-time duty with high performance, additional voltages and speeds upon request
Options: Thermal protection, special shafts, special flanges, custom
