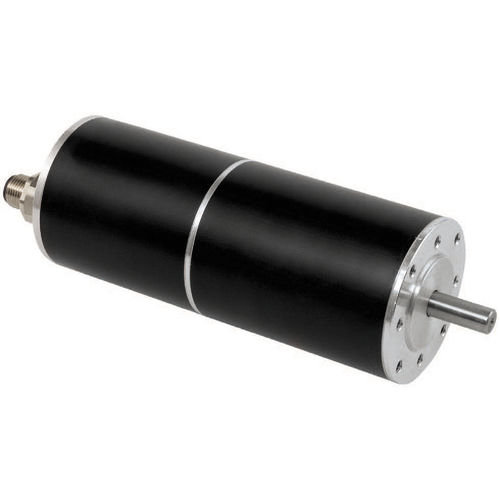

Brushless motor MSA 6DC24 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- permanent magnet, with integrated driver and coder
- Protection class
- IP65, IP44
- Number of poles
- 4-pole
- Other characteristics
- CANopen communication, with integrated motion controller, PROFIBUS DP
- Power
80 W, 100 W
(0.11 hp, 0.14 hp)- Intensity
5.7 A, 5.8 A
- Torque
0.022 Nm, 0.029 Nm
(0.016226 ft.lb, 0.021389 ft.lb)- Rotational speed
3,300 rpm, 3,500 rpm
(20,734.5115 rad.min-1, 21,991.1486 rad.min-1)- Operating temperature
Min.: -15 °C
(5 °F)Max.: 40 °C
(104 °F)
Description
CANopen, Profibus-DP, Integrated 4 Q controller, Sinus commutation, Absolute multi-turn encoder, Run records programmable
Rotor: 4-pole neodym magnet, low cogging
Life time: 20,000 h, S1duty
Isolation class: B, optional F
Protection: Overtemperature protection, current limitation
