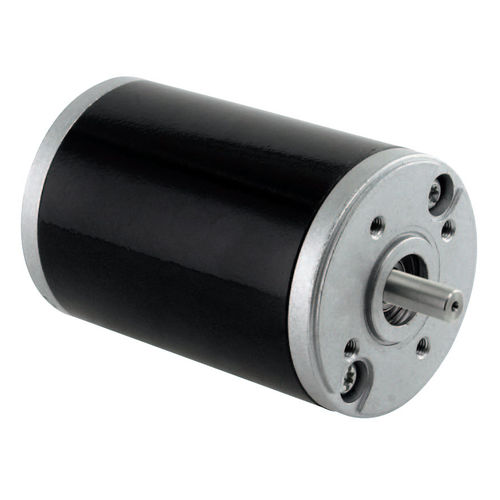

Brushless motor Pg 63DC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V, 12 V
- Configuration
- permanent magnet
- Protection class
- IP54
- Number of poles
- 2-pole
- Other characteristics
- custom, high-performance
- Power
44 W, 85 W
(0.06 hp, 0.12 hp)- Intensity
2.75 A, 5 A, 5.1 A, 10 A
- Torque
0.014 Nm, 0.027 Nm
(0.010326 ft.lb, 0.019914 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Connection: Connection to the power supply, battery, PWM controller or control amplifier, residual ripple of the operating voltage max. 5% Cable connection, optional plug-in connector
Commutation: Mechanical commutation using a 12-part commutator
Magnetic system: 2-pole permanent ferrite magnet
Service life: 3,000 h, S1 duty
Insulation mat. class: B, optional F
Special model: Design for short-time operation with high performance, additional voltages and speeds upon request
Options: Special shafts, custom designed
