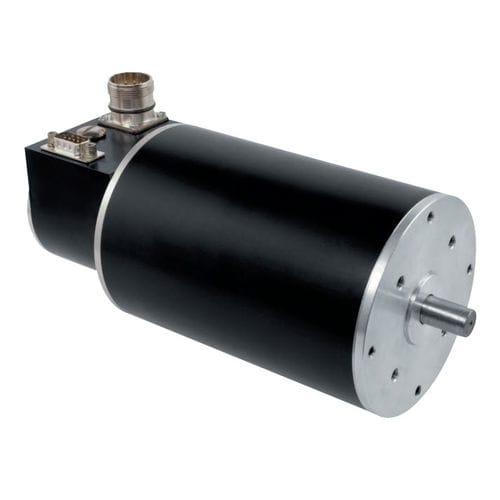

Brushless motor MSA 9567DC24 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- permanent magnet, with integrated driver and coder
- Protection class
- IP65, IP44
- Number of poles
- 4-pole
- Other characteristics
- low-speed, motion controller, CANopen, PROFIBUS DP
- Power
86 W
(0.12 hp)- Intensity
5.5 A
- Torque
0.15 Nm
(0.110634 ft.lb)- Rotational speed
550 rpm
(3,455.7519 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
CANopen, Profibus-DP, Integrated 4 Q controller, Sinus commutation, Absolute multi-turn encoder, Run records programmable
Rotor: 4-pole neodym magnet, low cogging
Life time: 20,000 h, S1 duty
Isolation class: B, optional F
Protection: Overtemperature protection, current limitation
