Slide potentiometer PZ12-S-025 0000X000X00

manualhousedfor industrial applications

Overview

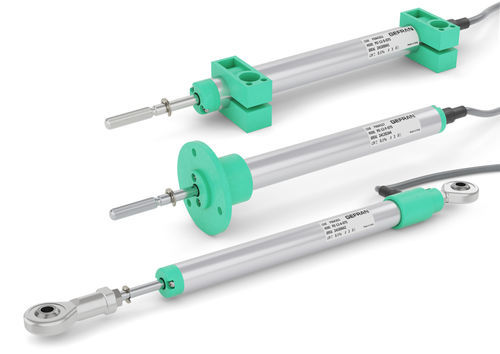

The PZ12 (Gefran) is a potentiometer-type position sensor with a 1/2 in cylindrical housing designed for compact, versatile industrial installation.

Main features

• 1/2 in cylindrical housing for compact installation.
• Multiple mounting systems available: brackets, self-aligning ball-joints, or flange.
• Optimized mechanical structure suitable for special executions and custom variants.
• No electrical output variation outside the theoretical electrical stroke, simplifying installation and setup.
• Typical applications: wood and glass working/finishing machines and automotive test benches.

Ordering & configuration

• Typical order code example: PZ12-S-025 0000X000X00.
• Mounting options: S = brackets; A = self-aligning ball-joints; F = flange.
• Available nominal strokes/models: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 (units per model selection).
• Position adjustable via slider or numeric input during configuration; unit selector supports mm, cm, inch, ft.
• Attachments: option to include linearity curve or no certificate.
• Cable length codes: 0 = standard, 2, 3, X = other lengths on request.
• Plastic head color options: 0 = green (default), N = black.

Available resources (listed on page)

• Brochure (Position Transducers)
• Product range brochure
• PZ12 datasheet
• UK Conformity Declaration - PZ12
• EU Conformity Declaration - PZ12
• EU Conformity Declaration 339 - PZ12

Technical specifications

• Housing: 1/2 in cylindrical.
• Mounting: S (brackets), A (self-aligning ball-joints), F (flange).
• Order code example: PZ12-S-025 0000X000X00.
• Available nominal strokes/models: 25–300 (standard increments).
• Position unit (configurable): mm (default), cm, inch, ft.
• Cable length options: standard (0) or selectable (2, 3, X other on request).
• Attachments: linearity curve or no certificate.
• Plastic head colors: green (0), black (N).
• Recommended applications: wood and glass working/finishing machines, automotive test benches, other industrial positioning uses.
