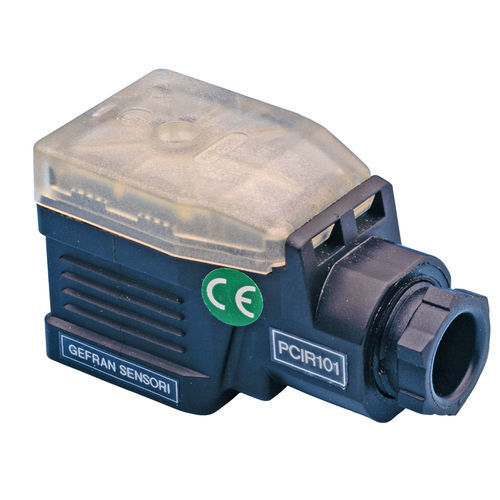

Analog signal conditioner PCIR 101-102

4-20 mAsingle-channelbuilt-in

Overview
The PCIR signal conditioners are designed for displacement transducers (linear and rotary). Each model integrates a single SMD circuit with high‑stability electronic components to provide very good linearity and low thermal drift. The electronics are housed in a 4‑pole connector with internal trimmers for Zero and Span adjustment. The connector's internal part can be rotated in 90° steps, enabling installation in four orientations.

Main features

• Interface module integrated in the connector
• Standard output 0…10 Vdc (PCIR 101)
• Standard output 4…20 mA (PCIR 102)
• Single SMD circuit with high‑stability components
• High linearity and low thermal drift of Zero and Span
• Adjustable Zero and Span via internal trimmers
• Connector internal part rotatable in 90° steps (4 mounting orientations)

Description
The PCIR 101 (0…10 Vdc) and PCIR 102 (4…20 mA) condition the potentiometer/displacement sensor signal directly at the connector. The compact SMD electronics perform signal conversion and compensation; Zero and Span can be fine‑tuned using internal trimmers accessible after connector installation. The mechanical design allows the connector insert to be rotated by 90° increments to adapt to different cable routing and mounting constraints.

Technical specifications

• Product family: PCIR series
• Models: PCIR 101 (0…10 Vdc), PCIR 102 (4…20 mA)
• Integration: conditioning circuit integrated in 4‑pole connector
• Electronics: single SMD circuit with high‑stability components
• Adjustments: internal trimmers for Zero and Span
• Mounting: connector insert rotatable in 90° steps (4 positions)
• Target sensors: linear and rotary displacement transducers / potentiometers
• Performance: high linearity, low zero/span thermal drift
• Connector compatibility: 4‑pole DIN 43650 for direct connection to LTM and PKM potentiometers
