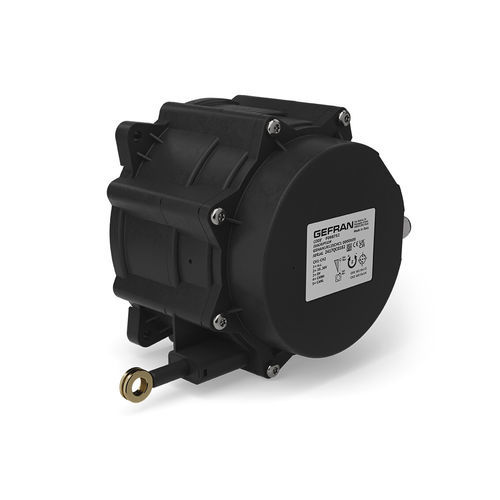

Linear position transducer GSH-A

contactlessHall effectMEMS

Contactless linear sensor – HALL EFFECT technology – with embedded single-axis MEMS inclinometer (i.e. single axis Z). Excellent performance, high IP rating, shock and vibration resistance guarantee sensor performance in typical mobile hydraulic applications, wherever there’s the need to monitor a linear position and a tilt angle at the same time. The compact design and the CANopen signal ouput as well as the full redundant circuit, both for the linear position and for the tilt angle measurements, make such a sensor a state-ot-the-art multivariable transducer. Resolution: 0.1mm linear position / 0.1 degree tilt angle Electrical connections: M12 connector output CANopen 14-bit output Vibrations: 20g between 10 Hz … 2000 Hz according to IEC 60068-2-6 Shock: Pulse on 3 axes; 50g 11 ms according to IEC 60068-2-27 Electromagnetic compatibility: 2014/30/EU Electromagnetic Compatibility (EMC) Life: 500.000 max speed 1m/s acc. max 0.5g; 250.000 max speed 2 m/s acc. max 1g; typical speed 1m/s, typical acceleration 1g Constructive material of transducer body and wire Transducer: PBT Wire: AISI316 stainless steel, Ø0.85mm nylon coating
