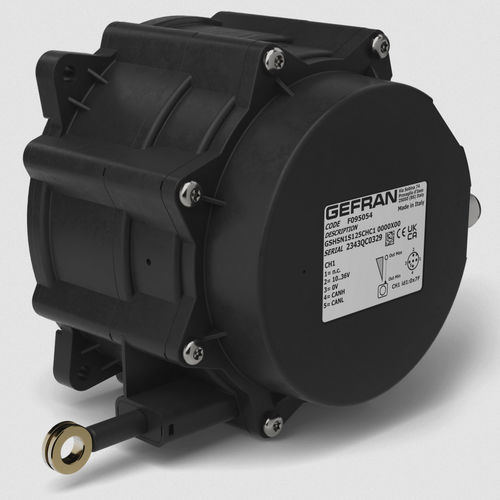

Linear position transducer GSH-S

contactlessHall effectresistance

Linear transducer with contactless Hall effect measurement technology. Excellent repeatability, high IP rating, resistance to shock and vibrations, and high electromagnetic compatibility make this transducer suitable for mobile hydraulic applications. Developed to guarantee a robust, high-performance solution for applications such as agricultural vehicles, earth-moving machines, and hoisting equipment. Its compact dimensions (only 91,8mm height) make it the ideal product to be incorporated into the crossbars of the stabilization legs of vehicles. Supply voltage: +10..36 Vdc (other output – see output signal for right supply voltage) Electrical connections: M12 connector output Linearity: ± 0.5% FS. Repeatability: < ±2% FS Vibrations: 20g between 10 Hz … 2000 Hz according to IEC 60068-2-6 Shock: Pulse on 3 axes; 50g 11 ms according to IEC 60068-2-27 Electromagnetic compatibility: 2014/30/EU Electromagnetic Compatibility (EMC) Life: 500.000 max speed 1m/s acc. max 0.5g; 250.000 max speed 2 m/s acc. max 1g; typical speed 1m/s, typical acceleration 1g Constructive material of transducer body and wire Transducer: PBT Wire: AISI316 stainless steel, Ø0.85mm nylon coating
