Slide potentiometer PZ34-S-025 0000X000X00

manualanalogelectronic equipment

Product

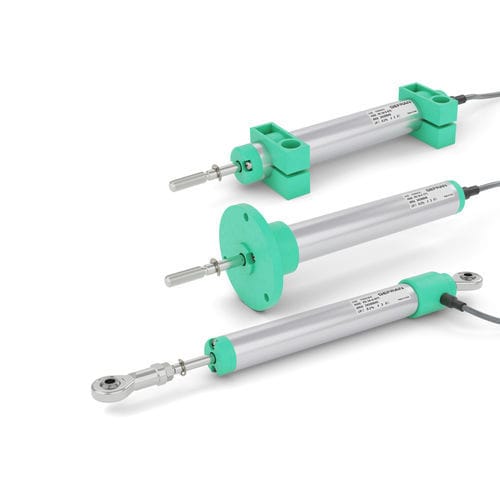

PZ34 — linear potentiometer with 3/4-inch cylindrical housing for industrial position sensing and displacement measurement.

Main features

• Stroke range: 25 to 300 mm
• Mechanical fixing: brackets, self-aligning ball-joints or flange
• Independent linearity up to ±0.05%
• Infinite (continuous) resolution

Description

• No variation of the electrical signal outside the theoretical electrical stroke
• Maximum displacement speed: up to 10 m/s
• Operating temperature range: -30 to +100 °C
• Electrical connection: 3‑pole screened cable (standard length 1 m; custom lengths on request)
• Life duration: > 25×10^6 meters or > 100×10^6 operations (whichever is smaller, within C.E.U. conditions)
• Ingress protection: IP60

Available configurations and ordering data

• Order code example: PZ34-S-025 0000X000X00
• Mounting options: S = brackets; A = self-aligning ball-joints; F = flange
• Selectable strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm
• Cable length codes: 0 = 1 m (standard); 2, 3 = fixed options; X = other lengths on request
• Attachments: L = linearity curve on request; 0 = none
• Plastic head color: 0 = green (standard); N = black

Technical specifications

• Product name: PZ34
• Type: potentiometric linear position sensor
• Stroke: 25–300 mm (fixed increments)
• Independent linearity: up to ±0.05%
• Resolution: infinite (contact potentiometer)
• Electrical output: potentiometric analog
• Cable: 3‑pole screened, standard 1 m
• Max displacement speed: up to 10 m/s
• Operating temperature: -30 °C to +100 °C
• Life expectancy: > 25×10^6 m or > 100×10^6 operations
• Ingress protection: IP60
• ATEX / Ex suitability: suitable for Ex areas (gas groups IIA, IIB, IIC) — see technical documentation
