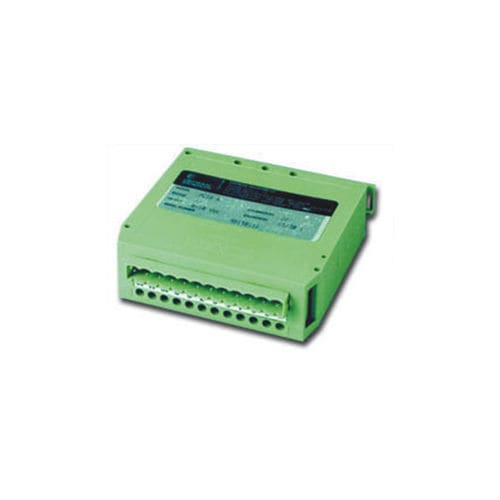

Analog signal conditioner PCIR

2-wayDIN railfor potentiometers

Overview
The PCIR signal conditioner adapts and amplifies potentiometer (linear or rotary) outputs for reliable connection to data acquisition systems and PLCs while preserving sensor linearity.

Main features

• High input impedance >100 MΩ
• Voltage output 0…10 V
• Linearity error < 0.02% full scale output

Description

• Supports simultaneous connection of two transducers
• Low thermal drift: 0.01% full scale / °C
• DIN-rail mounting compatible with EN50035 and EN50022

Applications / Function
Signal conditioner for linear or rotary potentiometric transducers: conditions and adapts transducer output impedance for connection to acquisition systems or PLCs without altering transducer linearity.

Technical specifications

• Input impedance: >100 MΩ
• Output: 0…10 V voltage
• Linearity error: < 0.02% of full scale output
• Simultaneous connection: supports two transducers
• Thermal drift: 0.01% full scale / °C
• Mounting: DIN-rail EN50035 and EN50022
