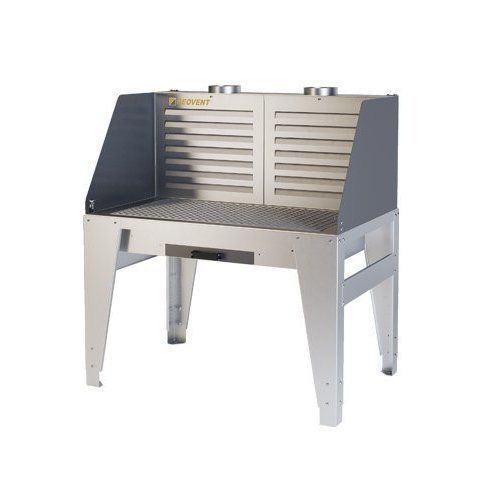

Mild steel grinding and welding table GT Ultra

suction

Product summary
The GT ULTRA welding and grinding table extracts welding smoke and metal dust at source using a back-edge suction system. Fold-out side doors and removable side panels allow processing of larger workpieces. Designed for workshop and industrial use, the unit is supplied partially assembled to simplify transport and installation.

What do you get?

• Back-edge suction for capture of smoke and fine dust at source.
• Flexible fold-out side doors to accommodate large or bulky components.
• Choice of top surface: solid top, grate, or grate with dust drawer.
• Under-grate suction in the drawer variant for improved removal of heavier particles.
• Height-adjustable frame for ergonomic positioning.
• Floor-fixing points for stable installation.
• Partially assembled delivery to reduce handling on site.

Versions

• Standard (Ref. No. 02-013): solid top for general welding and grinding.
• Grate (Ref. No. 02-014): grated top allowing heavier particles to fall into the table body for collection.
• Grate + drawer (Ref. No. 02-015): grated top with dust drawer and under-suction for effective removal of heavier particles.

Performance

• Airflow requirement for standard and grate versions: 1,800 m³/h.
• Airflow requirement for drawer version (grate + drawer): 2,000 m³/h.

Technical data
Material: Galvanised steel
Installation: Indoor
Connection (inlet): ø160 mm
Dimensions (L x W x H): 1,200 x 800 x 1,300 mm; 900 x 800 x 1,300 mm
Weight: Up to 105 kg

Characteristics / technical specifications

• Material: Galvanised steel.
• Installation: Indoor use.
• Connection (inlet): ø160 mm.
• Available sizes (L x W x H): 1,200 x 800 x 1,300 mm and 900 x 800 x 1,300 mm.
• Weight: up to 105 kg depending on configuration.
• Three product versions: solid top (02-013), grate (02-014), grate with drawer and under-suction (02-015).
• Top surface options: solid top, grate, or grate + dust drawer (drawer variant includes suction under the grate).
• Back-edge suction for efficient capture of welding smoke and metal dust.
• Fold-out side doors to accommodate large or bulky workpieces.
• Height-adjustable for ergonomic working conditions.
• Delivered partially assembled to ease handling and installation.
• Airflow requirements: 1,800 m³/h (standard and grate), 2,000 m³/h (drawer).
