Rock wool core sandwich panel

aluminum facingfor wallfor enclosure walls

Overview

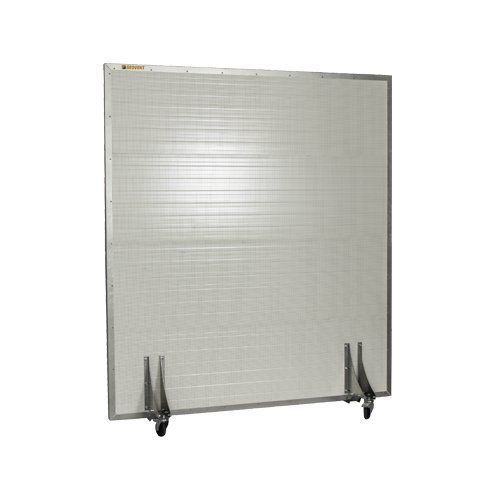

The wall panel is a mobile shielding solution for industrial workstations, designed to contain noise, dust and sparks while improving operator safety. Delivered partially assembled with heavy-duty wheels and brakes for easy relocation and stable positioning.

What do you get?

• A mobile panel system for separating and protecting work areas in industrial environments.
• Containment of noisy, dusty and spark-generating processes.
• Four heavy-duty wheels with brakes for flexible and stable positioning.
• One face finished in silver RAL 9006 and the opposite face perforated white to assist sound reduction.
• Galvanised steel frame for durability and stability.
• 50 mm rock wool core providing acoustic absorption and contributing to fire protection.
• Quick assembly with click-together panels and riveted U-profiles; delivered partially assembled.

Details
The panel is supplied partially assembled: the bottom panel is pre-fitted with heavy-duty wheels (with brakes) and the remaining panels click into position; U-profiles are fixed using the supplied rivets. One face is smooth with a silver RAL 9006 finish for a clean appearance; the opposite face is perforated white to reduce noise from the process side. The frame is galvanised steel. The core consists of a 50 mm rock wool panel for acoustic performance and added fire protection.

Applications
Suitable for separating work areas, enclosing processes or protecting surrounding zones where shielding or containment of noise, dust and sparks is required; intended for indoor industrial use.

Technical data
Material: Rock wool panel
Installation: Indoor
Dimensions (L x W x H): 2000 x 52 x 2330 mm; 2500 x 52 x 2330 mm
Weight: 82 kg; 88 kg

Specifications

• Denomination: Wall panel
• Material: Rock wool panel (50 mm core)
• Frame: Galvanised steel
• Finish: One side silver RAL 9006, other side perforated white
• Mobility: 4 heavy-duty wheels; brakes for stable positioning
• Assembly: Click-together panels; riveted U-profiles; delivered partially assembled (bottom panel pre-fitted with wheels)
• Applications: Shielding workstations; containment of noise, dust and sparks; separating work areas and enclosing processes
• Standard sizes: 2000 x 52 x 2330 mm (82 kg) and 2500 x 52 x 2330 mm (88 kg)
• Installation environment: Indoor
