Part paint booth

filterminicompact

Product description

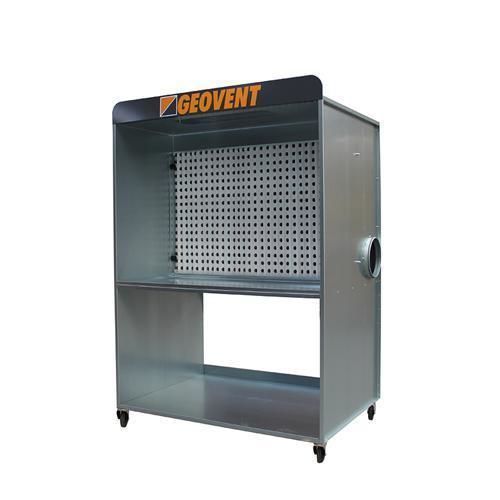

The Geovent spray booth is a compact solution for painting, coating and similar applications on smaller items. Constructed from galvanised steel, it includes an integrated light, Andreae-filter, wheels and a drip tray. It captures overspray efficiently and is intended for workshops and production areas. Not suitable for ATEX zones involving organic solvents or explosive substances.

What do you get?

• Galvanised steel construction.
• Integrated light for improved visibility.
• Andreae-filter included for effective paint arrest.
• Built-in wheels for easy mobility.
• Drip tray to collect excess paint.
• Available in three widths: 1,000 mm, 1,400 mm, 1,800 mm.
• Flexible duct connections: left, right or top.

Product information
The booth is designed for small-scale spray operations such as painting, coating and finishing. It is built for demanding workshop environments and can be relocated when needed. Each model connects to 230 V and has a recommended airflow for efficient extraction. The drip tray reduces spill risk and supports cleaner, safer working conditions.

Technical data
Material: Galvanised steel
Installation: Indoor
Max. air volume (by model): 2,000 m³/h; 2,800 m³/h; 3,600 m³/h
Voltage: 230 V
Dimensions (L×W×H) per model: 1,000 × 1,000 × 2,035 mm; 1,000 × 1,400 × 2,035 mm; 1,000 × 1,800 × 2,035 mm

Features / specifications

• Andreae-filter included for high paint arrest efficiency.
• Integrated light for improved visibility during use.
• Built-in wheels for mobility and flexible positioning.
• Drip tray to collect excess paint and help prevent spills.
• Multiple duct connection options: left, right or top.
• Recommended airflow range across models: approx. 2,000–3,600 m³/h.
• Not suitable for ATEX zones with organic solvents or explosive substances.
