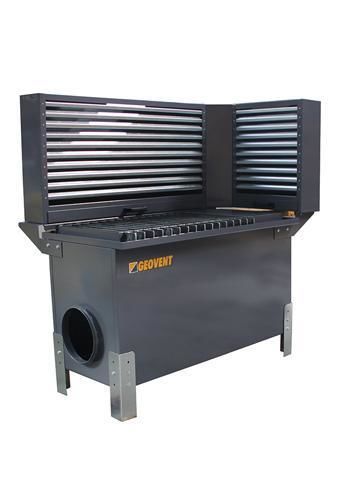

Mild steel grinding and welding table

suction

Description
The welding and grinding extraction table is designed to capture dust and fumes generated during welding and grinding operations. Optional rear and side edge extraction panels collect particles at the source and direct them to an integrated dust drawer. The table is intended for workshop and industrial use and is available in multiple sizes and configurations to suit a range of applications. Recommended airflow ranges from 1,500 to 6,500 m³/h depending on the process and model.

What do you get?

• A worktable suitable for both welding and grinding operations.
• Source extraction of dust, fumes and particulate matter.
• Optional rear and side extraction panels with integrated dust drawer.
• Rear panel with high-efficiency extraction gaps for even airflow distribution.
• Airflow capacity from 1,500 to 6,500 m³/h.
• Easy dust collection and emptying via the built-in drawer.
• Custom configurations available to meet specific operational requirements.

Technical data
Material: Painted steel
Installation: Indoor
Connection (inlet): ø200 mm – 2×315 mm
Dimensions (L×W×H): 600 × 600 × 800 mm
900 × 600 × 800 mm
1,200 × 600 × 800 mm
1,800 × 1,000 × 800 mm
2,500 × 800 × 800 mm
Weight: 55 – 160 kg

Technical characteristics

• Material: Painted steel.
• Installation: Indoor use.
• Inlet options: ø200 mm and 2×315 mm.
• Available sizes: 600×600×800 mm; 900×600×800 mm; 1,200×600×800 mm; 1,800×1,000×800 mm; 2,500×800×800 mm.
• Weight range: 55–160 kg depending on model.
• Recommended airflow: 1,500–6,500 m³/h depending on application.
• Optional rear and side edge extraction panels with integrated collection drawer for grinding dust.
• Top duct plug (ø200 mm) on the rear duct for connection to an extraction system.
• Models 02-002 and 02-005 include a high-efficiency rear extraction panel as standard.
