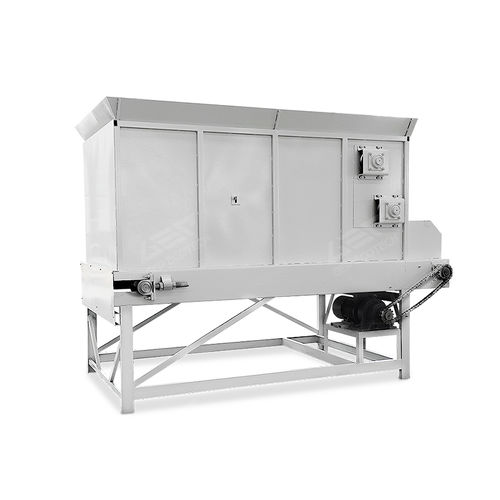

Flexible feeder GUF series

fully-automaticcontinuousfilm

The GUF series uniform feeder is a device that ensures sufficient supply of materials to the RDF forming machine, usually located between the shredder and the forming machine. It can reduce the direct pressure of materials on the RDF forming machine, prevent the RDF forming machine from running abnormally due to overload, and enable materials to smoothly enter the RDF forming machine, achieving continuous production and uniform feeding. The uniform feeder is mainly composed of the frame, bin body, material feeding shaft, chain plate, bin shaft, observation port, bin cover, infrared sensing port, and other parts. It has a high degree of automation and is suitable for uniform feeding of industrial waste, MSW, biomass straw and other materials. The driving device of the uniform feeder adopts cycloidal reducer, motor, and variable frequency speed control design to supply materials to the forming machine at a uniform speed. The side wall of the machine is equipped with an infrared sensing device. When the material reaches a certain level, it is transmitted to the feeding system through infrared sensing to adjust the feeding amount. This can achieve a matching between the shredding amount and the pressing block forming amount, ensure reasonable production capacity, avoid material blockage and overload, and protect the shredder and forming machine.
