Cylindrical plug UFP series

conicalmalesilicone

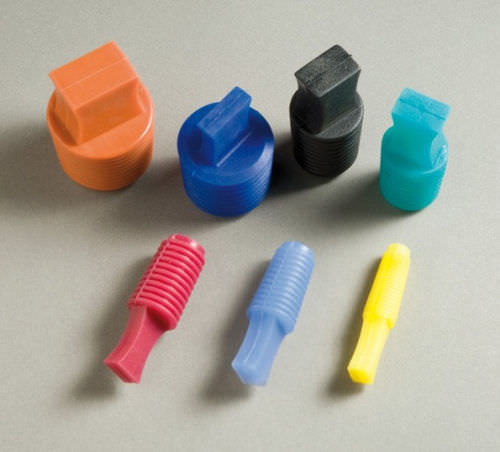

Flangeless PLUG REFERENCE: UFP DESCRIPTION: Silicone Flangeless Plug 315ºC MATERIAL: High temperature Silicone 315ºC See the material data sheet DIMENSIONAL TOLERANCE The dimensional tolerance of the Silicone Flangeless Plug is according the RMA A3 APLICATIONS: Powder Coating, Wet Coating, E-Coating, Plating, Anodizing. USES: Used to cover M5 to M28 threaded holes. This plug is used to mask a hole and the first screw thread because of the corrugated design. Given the conical shape, the same reference can plug slightly different hole dimensions by adjusting it to the appropriate size required for each use. The pull is sturdy so it doesn’t break while installing or removing the plug. RECOMMENDATIONS for USE: The size of the hole to be hidden must between the largest and smallest diameter of the plug “A” and “B”. This plug is inserted with a bit of pressure. The plug should not be threaded when installing it in the hole as the screw threads will cut the plug. Once installed, the plug must be secure. It is recommended that no more than half of the plug sticks out so it doesn't fall during the process. STORAGE RECOMMENDATIONS: Storing this product away from direct sunlight and at a temperature between 20º C and 25º C is recommended in order to prevent any modifications to the properties such as flexibility, elasticity or decolouring, among others. The material this product is made of possesses no health risk nor is it considered hazardous requiring consideration when handling or storing it. EXPIRY This product does not expire, but it may lose plasticity and flexibility if stored inappropriately and/or for more than 5 years.
