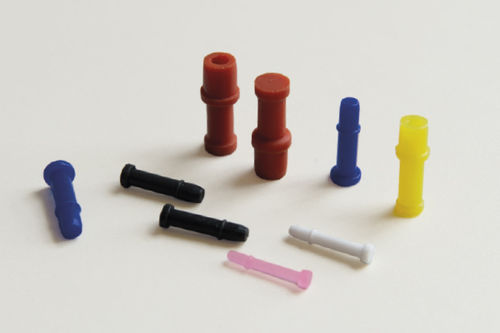

SILICONE HOLLOW THREAD PLUG
REFERENCE:
HTM
DESCRIPTION:
Silicone Hollow Thread Plug 315ºC
MATERIAL:
High temperature Silicone 315ºC
See the material data sheet
DIMENSIONAL TOLERANCE
The dimensional tolerance of the Silicone Hollow Thread Plug is according the RMA A3
APLICATIONS:
Powder Coating, Wet Coating, E-Coating, Plating, Anodizing.
USES:
Used to mask a hole and the first thread line. Range of sizes from M3 to M12. The Plug is fixed by pushing.
RECOMMENDATIONS for USE:
Choose the plug that adapts to the Metric dimension of the Hole to be masked. Fix the plug by pushing it into
the hole until the first flange is on the first screw line.
If the hole is not a Metric system Dimension, then chose the HTM reference with an “A” dimension as similar
as possible to the hole diameter and always a little bigger ( 0.2 or 0.3 mm bigger)
STORAGE RECOMMENDATIONS:
Storing this product away from direct sunlight and at a temperature between 20º C and 25º C is
recommended in order to prevent any modifications to the properties such as flexibility, elasticity or
decolouring, among others.
The material this product is made of possesses no health risk nor is it considered hazardous requiring
consideration when handling or storing it.
EXPIRY
This product does not expire, but it may lose plasticity and flexibility if stored inappropriately and/or for
more than 5 years.
USEFUL LIFE OF THE PRODUCT
The useful life of this product depends on the conditions and loads it is subjected to during the process.
Chemical products may reduce the useful life of the product.
