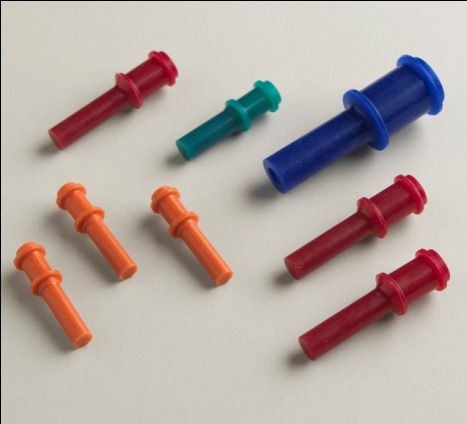

SILICONE DOUBLE FLANGE PULL PLUG
REFERENCE:
DFPP
DESCRIPTION:
Silicone Double Flange Pull Plug 315ºC
MATERIAL:
High temperature Silicone 315ºC
See the material data sheet
DIMENSIONAL TOLERANCE
The dimensional tolerance of the Silicone Double Flange Pull Plug is according the RMA A3
APLICATIONS:
Powder Coating, Wet Coating, E-Coating, Plating, Anodizing.
USES:
Used to mask both chambers of a through hole. Range of sizes from M6 to M20
RECOMMENDATIONS for USE:
Choose the plug that adapts to the Metric dimension of the Hole to mask. Fix the plug in the hole passing the
handle trough the hole and pulling it until the first flange are on the first screw line while the last flange fits
perfectly on the last screw line
In The right masking position this plug must cover the first and the last screw of the hole.
STORAGE RECOMMENDATIONS:
Storing this product away from direct sunlight and at a temperature between 20º C and 25º C is
recommended in order to prevent any modifications to the properties such as flexibility, elasticity or
decolouring, among others.
The material this product is made of possesses no health risk nor is it considered hazardous requiring
consideration when handling or storing it.
EXPIRATION DATE
This product does not expire, but it may lose plasticity and flexibility if stored inappropriately and/or for
more than 5 years.
USEFUL LIFE OF THE PRODUCT
The useful life of this product depends on the conditions and loads it is subjected to during the process.
Chemical products may reduce the useful life of the product.
