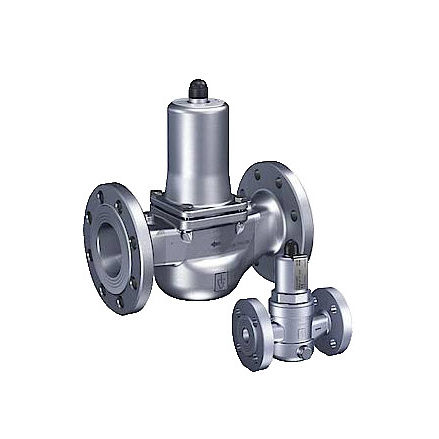

Diaphragm valve 431 seriescartridgeflow controlpressure-control
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm, cartridge
- Function
- flow control, pressure-control
- Media
- for gas, beverage
- Applications
- for pharmaceutical applications, for the food industry, for pump
- Material
- stainless steel
- Other characteristics
- for high flow rates
- DN
Max.: 80 mm
(3.15 in)Min.: 20 mm
(0.787 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.5 bar
(7.3 psi)- Temperature
Max.: 95 °C
(203 °F)Min.: -10 °C
(14 °F)
Description
High flow rates at low differential pressures. Can be adjusted and set externally during operation, for liquid and gaseous media, service friendly due to replacement cartridge. This overflow valve made of high-alloyed stainless steel combines all of these advantages. According to the sealing- and diaphragm materials employed, these valves can be used for neutral and non-neutral media.
For the protection of:
- pumps against overloading in closed circuits for neutral / non-neutral, non-sticking liquids
For the control of:
- systems under pressure for air, neutral / non-neutral gases and vapours
- industrial plants
- power plant technology
- pump systems
- mechanical engineering
- secondary areas in the food-, beverage-, pharmaceutical- and cosmetics-industries
