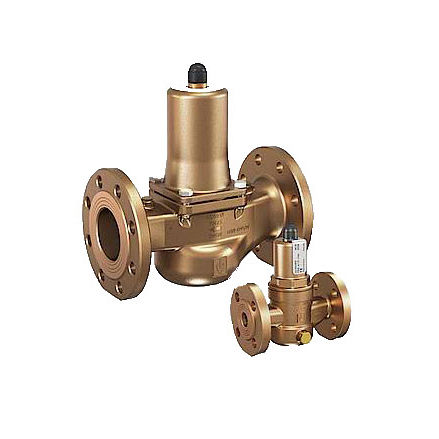

Flow control valve 631 seriespressure-controlfor airfor gas
Add to favorites
Compare this product
Characteristics
- Function
- flow control, pressure-control
- Media
- for air, for gas
- Body
- flange
- Applications
- for pump
- Material
- metal
- DN
Min.: 20 mm
(0.787 in)Max.: 80 mm
(3.15 in)- Pressure
Min.: 0.5 bar
(7.3 psi)Max.: 10 bar
(145 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 95 °C
(203 °F)
Description
In cases where flange connections are required, this valve offers the same features as the 630 version. The robust all-metal design makes this valve ideal for harsh operating- and environmental conditions, when sensitive control is required.
The set pressure can easily be read-off the (optional) pressure gauge.
For the protection of:
- pumps against overloading in closed circuits for neutral / non-neutral, non-sticking liquids
For the control of:
- systems under pressure for air, neutral / non-neutral gases and vapours
- industrial plants
- power plant technology
- pump stations
- mechanical engineering
