Water level gauge NL_SL

oilbypassstainless steel

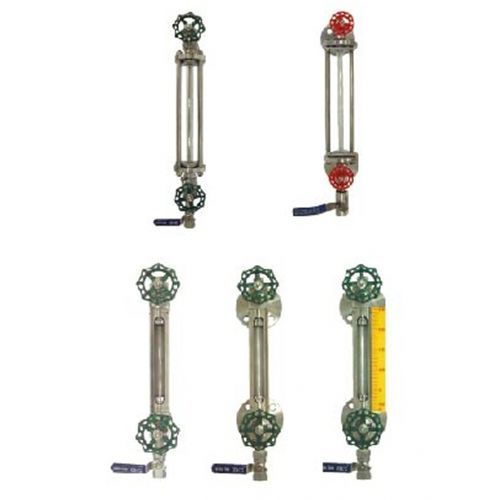

NL series-With Protection Support Rod SL series-With Protection Support Pipe The tubular glass type is a simplest liquid level gauge for using in the pressure rating of 10 kg/cm2 or under. The center to center length are over 1.5 meter. The intermediary joint ring would be used. Gauge glass are made heat resistant borosilicate. Technical Data Suitable Fluid: Water, Oil, other chemical liquid Gauge Valve Material: SS304 or SS316, others available Gauge Tube Material: Glass, P.V.C Seal Material: Viton, Teflon available Gauge Valve Function: With or Without ball check Max. Working Temperature: 100℃ Max. Working Pressure: 4~7 kg/cm2 Process Connection: 1/2"~1-1/2" Thread and Flange on request. Flange Rating: JIS, ANSI, DIN available Drain Valve Connection: standard 1/2"NPT(F); option available
