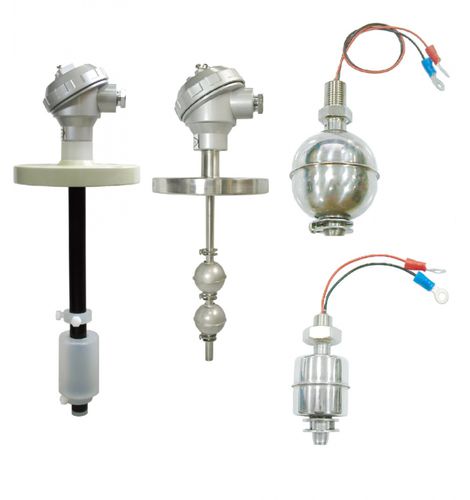

Magnetic float level switch LS_WLS_ELS

for liquidsPVCstainless steel

The vertical float level switch consist of a float with a built in permanent magnet, and guide tube built in reed switch (one or more), when the float rise up or fall down in liquid that induct the reed switch to become ON or OFF contact function. The ON-OFF contact provide a liquid level control for application by request. Technical Data Head Type: Without, or weather proof and explosion proof type available Material: Wetted parts are available for SS304, SS316, PVC ,PP, PVDF by requested. Multiple level point are available by requested for customer. Enclosure Housing: Weather proof; Explosion proof available Straight Style LS Series: LS-simple type; WLS-weather proof type; ELS-explosion proof type Angle Style Series: LA-simple type; WLA-weather proof type; ELA-explosion proof type Connection Size: Thread type-1-1/2" to 3"; Flange type-1-1/2" to 4" Float Size: (min.) ø26x26mm to (max.) ø75x75mm Float Material: SS316, PP, PVC, PVDF Contact Form: SPST (230V AC/DC) SPDT (250V AC/DC) SPDT (150V AC/DC)
