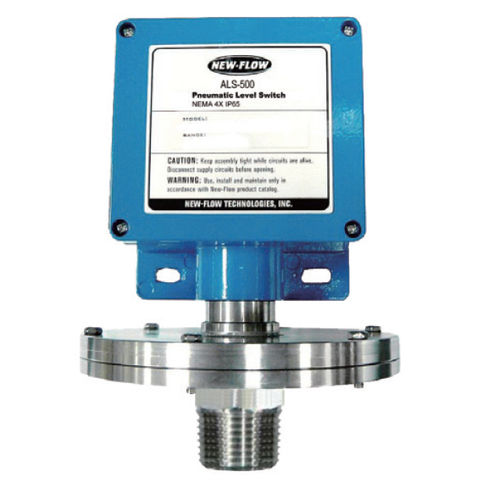

Membrane level switch ALS_500

for wateraluminumstainless steel

Proof Pressure to 1000psi Temperature: -30 to 205℃ The New-Flow ALS-500, a water proof level switch, is designed to be used in level systems. ALS-500 has high set point repeatability and narrow dead band features. Easily adjusted to the set point, no special tools needed! Technical Data Switch Data: one SPDT microswitch, 20amps 125/250V Housing: die cast aluminum alloy with paint Housing Enclosure: IP66 Conduit Connection: 3/4", 1/2"NPT female Pressure Element: Diaphragm type Proof Pressure: 1000psi Temperature: -30 to 205℃ Process Materials: wetted parts are all in SS316 Process Connection: Male G1(1"BSP), Female 1/2"NPT, Detected pipe size 1/2", Length 0.2~5 meters Control Functions: Please refer to the "Level Length Table". Select type: Nob A, B, C, E, F are available for setting level length Fix type: Section G, H, I are available for setting level length
