Float level switch EDW_EDX_602

for liquidsstainless steelIP65

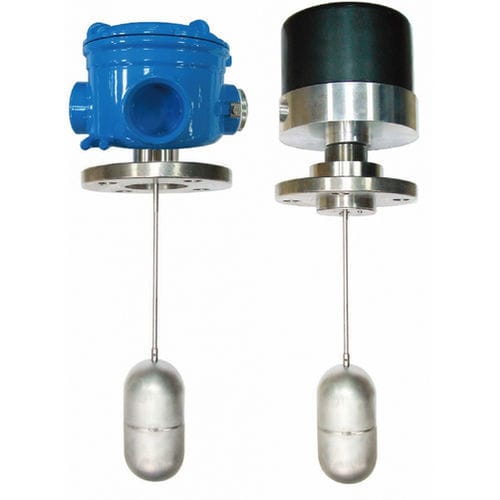

EDW602-Weather Proof Type EDX602-Explosion Proof Type The NEW-FLOW float level switches are made to applications such as pump control. waste water level and open tank. They are designed for high corrosive resistance and long service life. 602-Series are one stage control and easy to install. Technical Data Wetted Parts Material: SS304, SS316, SS316L available Housing Material: EDX-Aluminum alloy or SS316; EDW-SS316 or C.S with painting The Suitable S.G: ≥0.9 for max. length 1.2M; ≥0.8 for max. length 0.8M; ≥0.7~0.75 for less 0.5M Enclosure Housing: EDX-Explosion Proof: please check the ordering information; EDW-Weather Proof: IP65 Micro Switch Rating(SPDT & DPDT Type): 5A/125VAC, 5A/250VAC, 2A/30VDC Max. Temperature: 200℃ Max. Pressure: 40kg/cm2 at 25℃ Float Size: ø76mm x 153mm Length
