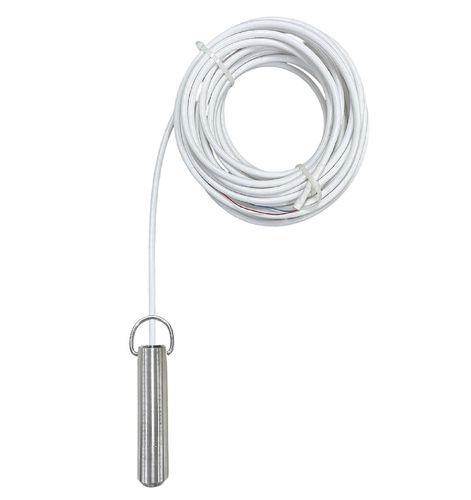

Hydrostatic level transmitter LG20C

for water2-wire4-20 mA

Any measurement range from 1 up to 100mH2O Output Signal: 4~20mA (2-wires)+HART The LG-20C features advanced circuitry and temperature compensation technology, which converts the liquid level measurement into a standard 4~20mA output signal. This offers strong anti-interference capability, low thermal error, and high stability, providing excellent measurement accuracy and sealing performance. Preferred Areas of Use -Water / filtrated sewage -Ballast Water Tank Level Monitoring for Vessels -Deep Well and Groundwater Monitoring -Sewage and Flood Discharge System Monitoring -Water Level Measurement of Rivers, Lakes, and Reservoirs -Factory Water Tank Level Monitoring Technical Data Measurement Range: 1...100mH2O Accuracy Level: 0.2 Thermal Error: ≤±0.2% F.S / 10℃ (Within the range of temperature compensation) Thermal Compensation Range: 0~50℃ Long Term Stability: ≤±0.1% / URL (12months) Response Time: 0.25s Overload Capacity: 150%~200% full span Working Temperature: -20~80℃ Power Supply: 10~32V DC [4~20mA (2-wires), HART ] Load Resistance: RL ≤(Us-Umin) / 0.026 Probe Material: SS316L, standard Probe Protection Class: IP68 Diaphragm Material: SS316L, standard; and Hastelloy C-276, Tantalum on option Cable Shield: PU and PTFE Cable Length: 5M standard; maximum length 100M
