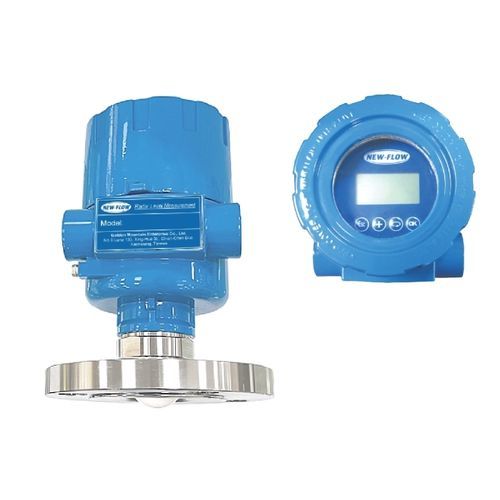

Radar level sensor RWL

for waterfor solidsfor liquids

Protection: IP68
Explosion Proof Type only for housing
Free Space Radar
High Frequency Radar

The RWL-Series is a smart radar level measuring instrument with a maximum measurement distance of 35M. The antenna is further optimized, new quick microprocessor can be used for the signal analysis and processing at a higher rate, so that the instrument can be used in very complex working conditions.

Technical Data
Application: Suitable for liquid level, and small range solid level measurement
Type: Standard antenna type, and Anti-corrosion sealed antenna type
LCD Display: 5 digital
Unit: Meter (M)
Measurement Range: 0.5~35M
Accuracy: ±3mm
Repeatability: ±1mm
Process Connection: 1-1/2"NPT or PF male thread; and Flange type available
Temperature Limited: -40℃~+100℃ (option: 150℃)
Pressure Limited: -1~16 Bar
Antenna Material: SS304 or SS316L; and PVDF for anti-corrosion type
Grounding Terminal: Stainless steel
Process Connection Material: SS304 or SS316L
Housing Material: Aluminum alloy
Enclosure Protection Class: IP68
Conduit Size: Female thread 1/2", 3/4"NPT or PF, and M20 x P1.5 or M25 x P1.5 available
Frequency Range: 80 GHz
Signal Output: 2-wires HART 4~20mA or 4-wires RS485
Power Supply: 24V DC
