Centrifugal pump 3700 waterfuelelectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water, fuel
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- process, chemical process
- Other characteristics
- mechanical, single-stage, central aspiration
- Flow
1,930 m³/h
(68,157.30677 ft³/h)- Pressure
60 bar
(870.226 psi)- Head
360 m
(1181'01" )- Fluid temperature
425 °C
(797 °F)- Weight
Max.: 756 kg
(1,666.69 lb)Min.: 128 kg
(282.19 lb)
Description

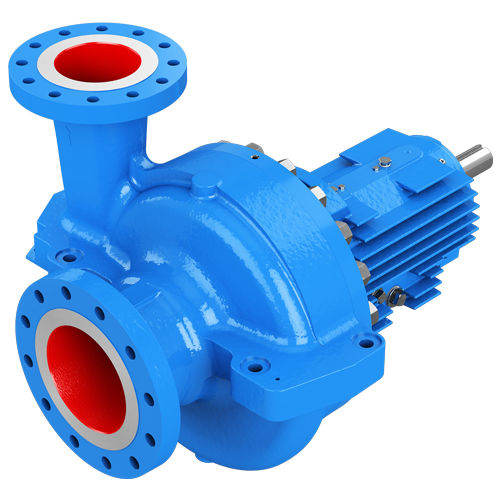

Goulds model 3700 API 610 (OH2) (ISO 13709) centerlined mounted process pump designed for optimum reliability. The Goulds 3700 employs state-of-the-art mechanical design features for sustained reliability and performance.
Specifications
API 610 - Full compliance with 10th Edition.
Tangential Discharge - Maximum hydraulic efficiency.
Finned Bearing Frame - Accommodates high temperatures without need for cooling water.
Seal Chamber - Meets dimensional requirements of API 610 and API 682.
Bearings and Seal Chamber Cooling - For extremely high temperature services.
Mechanical Design - Extra heavy shaft and bearings.
Back Pull-out Construction - Designed for one craft maintenance.
Dual Volute Casings - 3-inch discharge and larger.
Impeller - Multiple closed impellers for most casing sizes.
Centerline Support - High temperature stability.
