video corpo

acid pump / electric / centrifugal / industrial
3393 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
acid pump acid pump - 3393 series
{{requestButtons}}

Characteristics

  • Media:

    acid

  • Operation:

    electric

  • Technology:

    centrifugal

  • Domain:

    industrial

  • Other characteristics:

    multi-stage, modular, high-pressure, booster, dewatering, chemical process, feed, for reverse osmosis

  • Flow:

    750 m³/h (26,486 ft³/h)

  • Pressure:

    114 bar (1,653.43 psi)

  • Head:

    1,000 m (3280'10")

Description

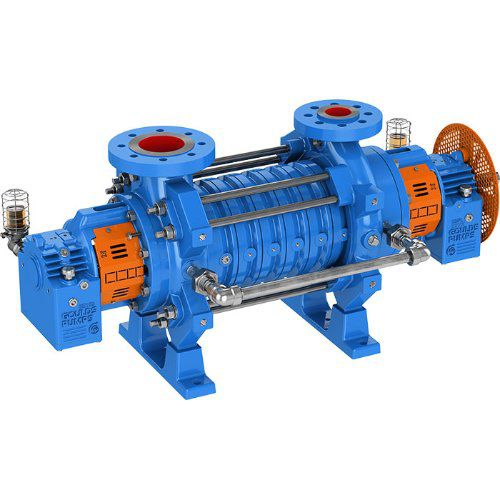

The Goulds Model 3393 is a multi-stage pump that is radially split and has a segmented casing. It has a modular design that has interstage components. The identical components are assembled to create pumps with various numbers of stages, materials, hydraulics and configurations to meet the requirements of the customers. The orientation of the multiple suction nozzle and discharge nozzle enable the 3393 pump to conform to several piping installations and allow more flexibility for the piping designer in his plant layout. Every pump size has several hydraulics to increase efficiency across a wide range of applications. All of the intermediate stage components are similar to lessen the inventory of spare parts. This pump is suitable for boiler feed and reverse osmosis applications. Other applications include booster, shower and other high pressure services. Its capacities are 3300 GPM or 750 m3/hr, heads to 3300 feet or 1000 m, temperatures of 400° F (204°C) and pressures of 1650 psig.
