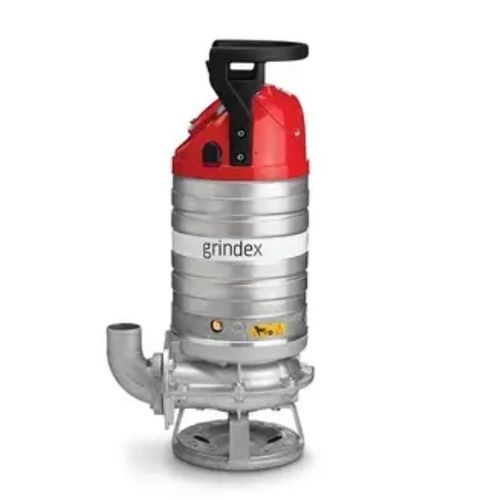

Slurry pump Sandy N / Himpellerelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- slurry
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial, for the mining industry, for the construction industry
- Applications
- discharge, handling, drainage
- Material
- stainless steel
- Voltage
- 380 V, 230 V
- Protection level
- IP68
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 25.2 m³/h
(1.8492 ft³/h)- Head
20 m
(65'07" )- Power
6.6 kW, 7.7 kW
(8.97 hp, 10.47 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Output diameter
220 mm
(8.661 in)- Width
460 mm
(18.11 in)- Height
867 mm
(34.13 in)- Weight
56 kg
(123.46 lb)
Description
Product Features
Cable SUBCAB
Discharge connection Hose
ISO-G or NPT
Limitations ph 5-8
Based on the same basic design as the drainage pumps, the sludge pumps come into action when the liquid gets dirtier than can be handled by the drainage pumps. The design even permits converting between drainage and sludge models allowing you to adapt the pump according to the varying conditions.
