Grease lubrication system EP-1

electricprogressiveautomatic

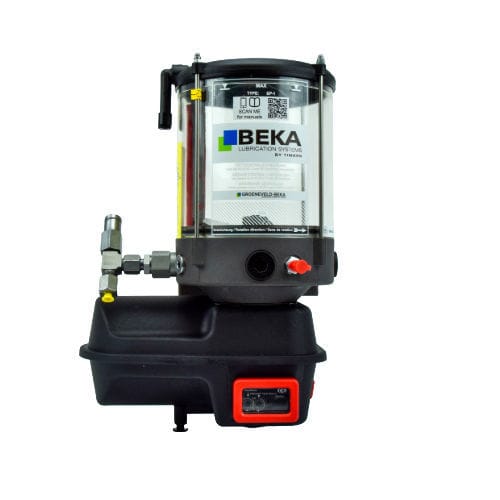

The BEKA EP-1 is an electrically actuated pump for progressive lubrication with up to 3 independently operating lubrication outlets. Because the pump is suitable for pumping NLGI-000 to NLGI-2 grease, the EP-1 is a system suitable for a wide range of applications. The EP-1 series pumps are available with different reservoir sizes, from 1.9 up to 16 litres. All reservoirs contain an agitator blade that facilitates product flow and pushes the lubricant towards the pump elements. The pumps can be equipped with an electronic grease level controller for low level indication. Three pump elements with different flow rates are available for the EP-1, as well as a flow-adjustable pump element. This gives you the possibility to adjust the grease quantity to the requirement of the individual progressive distributor circuits. All pump elements of the EP-1 can be equipped with a pressure relieve valve adjusted to 290 bar. The pumps can be controlled externally or with an integrated control unit. The control unit has several options, like the 2 different control functions: time or stroke. It also gives insight into the grease level, pump and distributor function, line rupture and lubricant feeding. It also comes with an integrated data logger for the DiSys diagnosis module. Technical Data - Outlets - Max. 3 Delivery volume - Max. 0.17 cm3 stroke/outlet Lubricant - Grease up to NLGI-2 Operating temperature - -20 up to +70 °C / (-4 up to 158 °F) Operating pressure - 350 bar (5100 psi) Reservoir - 1.9; 2.5; 4; 8 and 16 l transparent Material - Plastic Power supply - 12 VDC; 24 VDC Protection class - IP65
