Electric grease pump PICO

pistonfollower plate

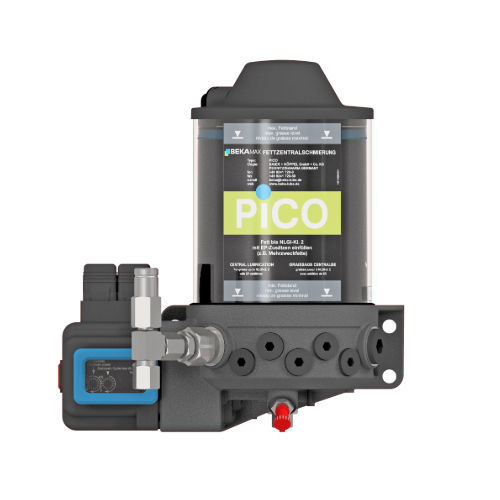

The BEKA PICO combines power and flexibility with a compact design. The PICO system offers the unique combination of progressive- and multi-line technology in one system, with 2 progressive outlets and up to 8 outlets for point to point lubrication. The compact pump comes with a 1.2 kg reservoir with either a paddle blade or a follower plate. The follower plate version has an integrated low level sensor in the reservoir, which is not available for the paddle blade versions. Both reservoir versions have an integrated overflow safety device in the reservoir to prevent overfilling of the reservoir. The grease output of the PICO is controlled by the pump elements. Two different elements are available when the system is used as a progressive pump with a max. of 0.12 cm3 per stroke. For the multi-line system we offer five different pump elements which offer an output of max. 0.05 cm3 per stroke. The system pressure is limited to 290 bar. The PICO is available without control or with an integrated control unit. The control unit has several options, like 3 control functions: time, stroke or revolutions. It also gives you insight in the grease level, pump and distributor function, line rupture and lubricant feeding. It also comes with an integrated data logger for the DiSys diagnosis module. Technical Data - Outlets - Max. 10; 2 progressive and 8 multi-line Delivery volume - Max. 0.12 cm3 stroke/outlet Lubricant - Grease up to NLGI-2 Material reservoir - Plastic, transparent Power supply - 12 VDC; 24 VDC Protection class - IP 65
