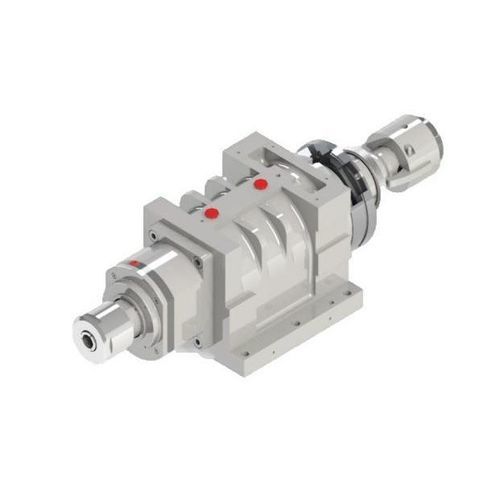

Turning spindle DGZC-09012

AC motorgrease lubricated

Overview
The DGZC-09012 is a Swiss-type lathe spindle designed for high-speed bar machining. It delivers up to 12,000 rpm using a three-phase permanent-magnet synchronous motor, provides 1.5 kW continuous power and features a φ27 mm through-hole for precision bar feeding on compatible CNC platforms.

Key data
Maximum speed: 12,000 rpm
Rated power (S1): 1.5 kW
Torque (S1 / Max): 3.7 N·m / 13.2 N·m
Through-hole diameter: φ27 mm

Technical data (summary)
Model: DGZC-09012/1.5J.1-WS
Motor type: Three-phase AC permanent-magnet synchronous motor
Max. current: 12.9 A
Rated voltage: 380 V
Balance grade: G0.4
Lubrication: Grease
Runout at 50 mm: ≤0.003 mm
Spindle bearings/models: 7011C/P4 - 7010C/P2
Encoder options: Chord encoder, SYNtec Encoder
Weight: 84.12 kg
Installation: Horizontal
Compatible CNC systems: Siemens, FANUC, Huazhong CNC, GSK CNC, SYNTEC, etc.

Characteristics / Technical specifications

• Model: DGZC-09012/1.5J.1-WS
• Maximum speed: 12,000 rpm
• Motor: Three-phase permanent-magnet synchronous motor
• Rated power (S1): 1.5 kW
• Max torque: 13.2 N·m
• Rated torque (S1): 3.7 N·m
• Max current: 12.9 A
• Rated voltage: 380 V
• Through-hole diameter: φ27 mm
• Spindle bearings: 7011C/P4 - 7010C/P2
• Encoders supported: Chord encoder, SYNtec Encoder
• Balance grade: G0.4
• Lubrication: Grease
• Runout (at 50 mm): ≤0.003 mm
• Weight: 84.12 kg
• Installation method: Horizontal
• Compatible CNC systems: Siemens, FANUC, Huazhong CNC, GSK CNC, SYNTEC
