Turning spindle DGZYC-20045/19-FWVCS

AC motorgrease lubricated

Product overview

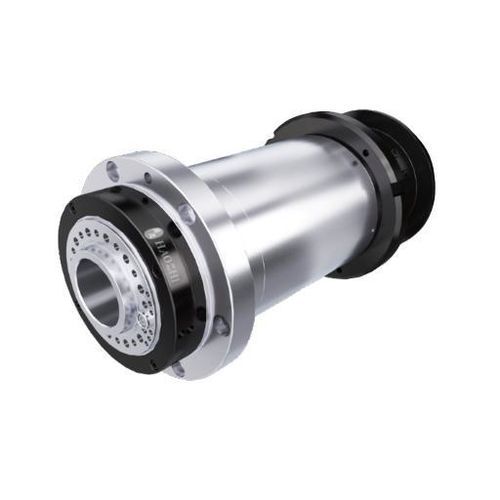

The DGZYC-20045 19 kW is a high-torque lathe spindle engineered for heavy cutting and strong acceleration. It uses a Φ200 mm body and reaches a maximum speed of 4,500 rpm. Rated torque (S1) is 181 Nm with a peak torque up to 398 Nm. Through-hole diameter is φ66 mm; weight 131 kg; horizontal installation. Compatible with major CNC systems including Siemens, FANUC, Huazhong CNC, SYNTEC and GSK.

Summary table
Diameter: Φ200 mm
Maximum speed: 4500 rpm
Torque (S1): 181 Nm
Power (S1): 19 kW

Technical data (table)
Model: DGZYC-20045/19-FWVCS
Motor type: Three-phase AC permanent magnet synchronous motor
Max. speed (rpm): 4500
Max. Current (A): 92
Max. Torque (Nm): 398
Rated voltage (V): 380
Rated power (S1/100%) (kW): 19
Rated torque (S1/100%) (Nm): 181
Balance grade: G0.4
Lubricating mode: Grease
Nose form: A2-6
Taper hole taper: 1:20
Conical runout (mm): ≤ 0.003
Front end face runout (mm): ≤ 0.003
Runout at 300mm of standard rod: ≤ 0.008
Spindle model: NN3020+N1017+2x100B
Through-hole diameter (mm): φ66
Encoder: 1Vp-p Chord encoder / SYNTEC Encoder
Weight (kg): 131
Installation method: Horizontal installation
Adaptive CNC system: Siemens, FANUC, Huazhong CNC, SYNTEC, GSK CNC, LNC, etc.

Characteristics / technical specifications

• Model: DGZYC-20045/19-FWVCS
• Motor type: Three-phase AC permanent magnet synchronous motor
• Maximum speed: 4500 rpm
• Rated power (S1): 19 kW
• Rated torque (S1): 181 Nm; Peak torque: 398 Nm
• Max. current: 92 A; Rated voltage: 380 V
• Through-hole diameter: φ66 mm
• Spindle bearings: NN3020 + N1017 + 2 x 100B
• Nose form: A2-6; Taper hole: 1:20
• Conical runout: ≤ 0.003 mm; Front end face runout: ≤ 0.003 mm; Runout at 300 mm: ≤ 0.008 mm
• Balance grade: G0.4
• Lubrication: Grease
• Weight: 131 kg; Installation: Horizontal
• Compatible CNC systems: Siemens, FANUC, Huazhong CNC, SYNTEC, GSK CNC, LNC, etc.
