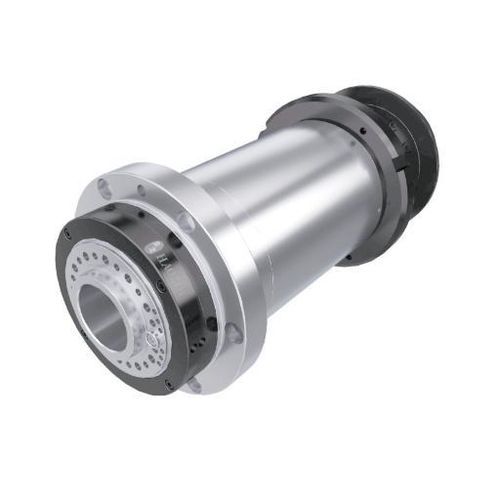

Turning spindle DGZYC-17005/11C-FWCS

AC motorgrease lubricated

Product overview
The DGZYC-17005 is a motorized lathe spindle that delivers 11 kW continuous power and a rated torque of 52.3 Nm in a Φ170 mm body. Equipped with an A2-5 nose and a Φ56 mm through-hole, it is designed for medium-duty turning applications where compact footprint and high torque are required.

Basic specifications
Diameter: Φ170 mm
Maximum speed: 5000 rpm
Rated torque (S1): 52.3 Nm
Rated power (S1): 11 kW

Technical data
Model: DGZYC-17005/11C-FWCS
Motor type: Three-phase AC permanent magnet synchronous motor
Max. speed (rpm): 5000
Max. current (A): 47.3
Max. torque (Nm): 109.8
Rated voltage (V): 380
Rated power (S1/100%) (kW): 11
Rated torque (S1/100%) (Nm): 52.3
Balance grade: G0.4
Lubrication: Grease
Nose form: A2-5
Taper hole: 1:20
Conical runout (mm): ≤0.003
Front end face runout (mm): ≤0.003
Runout at 300 mm (mm): ≤0.008
Spindle bearing arrangement: 3x7016 + 2x7014
Through-hole diameter (mm): Φ56
Encoder options: Chord encoder / SYNTEC Encoder
Weight (kg): 96
Installation: Horizontal
Compatible CNC systems: Siemens, FANUC, Huazhong CNC, SYNTEC, GSK CNC, LNC, etc.

Dimensions
Dimension drawing and mounting interface details are provided in the product drawings section.

Features / Technical specifications

• Model: DGZYC-17005/11C-FWCS
• Body diameter: Φ170 mm
• Rated power (S1): 11 kW
• Rated torque (S1): 52.3 Nm
• Maximum torque: 109.8 Nm
• Maximum speed: 5000 rpm
• Through-hole diameter: Φ56 mm
• Nose form: A2-5
• Motor type: Three-phase AC permanent magnet synchronous motor
• Rated voltage: 380 V
• Maximum current: 47.3 A
• Balance grade: G0.4
• Lubrication: Grease
• Runout tolerances: Conical ≤0.003 mm; Front face ≤0.003 mm; At 300 mm ≤0.008 mm
• Bearing arrangement: 3x7016 + 2x7014
• Encoder options: Chord encoder / SYNTEC Encoder
• Weight: 96 kg
• Installation: Horizontal
• Compatible CNC systems: Siemens, FANUC, Huazhong CNC, SYNTEC, GSK CNC, LNC
