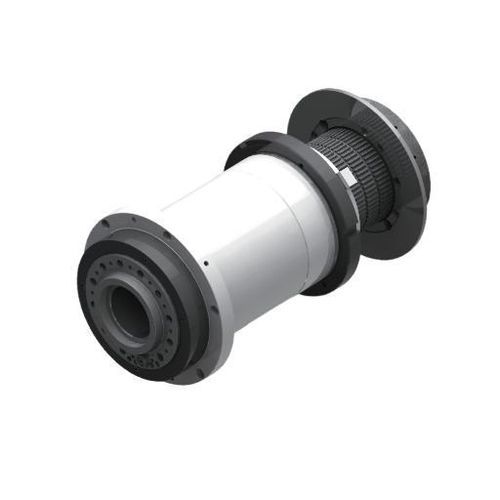

Turning spindle DGZC-23035A2

belt-drivengrease lubricated

Introduction
The DGZC-23035A2 is the synchronous-belt variant in the 230 mm spindle group. Its 48 mm through-hole and 602 mm body length are intended for lathes where timed-belt transmission is preferred over the larger-bore V-belt arrangement of the A1 model. The unit is designed for horizontal installation and can integrate with machine control via the SYNTEC 2256 magnetic ring encoder.

Key data
Diameter: Φ230 mm
Maximum speed: 3500 rpm
Through-hole diameter: Φ48 mm
Installation: Horizontal
Weight: 150 kg

Technical data
Model: DGZC-23035A2-FC
Maximum speed (rpm): 3500
Balance grade: G0.4
Lubrication mode: Grease
Nose form: A2-5
Taper hole ratio: 1:20
Conical runout (mm): ≤0.003
Front end face runout (mm): ≤0.003
Runout at 300 mm (mm): ≤0.01
Spindle bearing model: NN3024K/W33D2-21008
Drive pulley: Synchronous belt pulley
Cooling pulley / Encoder: SYNTEC 2256 magnetic ring
Overall length L: 602 mm
L1: 280–285 mm
L2: 16 mm

Features / technical specifications

• Model: DGZC-23035A2-FC
• Type: Synchronous-belt lathe spindle, diameter 230 mm
• Through-hole: Φ48 mm
• Maximum speed: 3500 rpm
• Balance grade: G0.4
• Lubrication: Grease
• Nose: A2-5
• Taper hole ratio: 1:20
• Conical runout ≤ 0.003 mm
• Front end face runout ≤ 0.003 mm
• Runout at 300 mm ≤ 0.01 mm
• Spindle bearing model: NN3024K/W33D2-21008
• Drive: Synchronous belt pulley
• Encoder / cooling: SYNTEC 2256 magnetic ring
• Weight: 150 kg
• Installation: Horizontal
• Dimensions: A Φ230, B Φ305, C Φ140, D Φ160, L 602 mm, L1 280–285 mm, L2 16 mm
